Diodes Incorporated AP22816/17/18 Power Distribution Load Switches

Diodes Incorporated AP22816/17/18 1A/1.5A/2A Power Distribution Load Switches are single-channel, current-limited, integrated high-side power switches optimized for Universal Serial Bus (USB) and other hot-swap applications. The AP22816/17/18 are available with both polarities of enable input and comply with USB standards.

The Diodes Inc AP22816/17/18 Power Distribution Load Switches feature a 1A, 1.5A, or 2A output current, fast short-circuit response time, and an integrated output discharge function to ensure completely controlled discharging of the output voltage capacitor. The switches offer a complete protection solution with reverse current blocking, overcurrent, overtemperature, and short-circuit protection, as well as controlled rise time and undervoltage lockout functionality. The 6ms deglitch capability on the open-drain flag output prevents false overcurrent reporting and requires no external components.

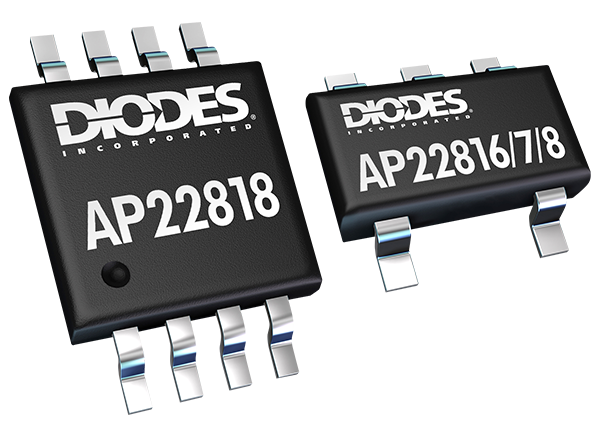

The AP22816/17/18 Switches are available in the standard Green and RoHS compliant TSOT25 and MSOP-8 packages.


  • Input voltage range of 2.7V to 5.5V
  • Logic level enable pin available with active-high or active-low versions
  • Protections:
    • 2kV HBM, 500V CDM ESD Protection
    • Overcurrent protection with auto-recovery
    • Short-circuit protection with auto-recovery
    • Overtemperature protection with auto-recovery
    • Output reverse current / voltage protection
  • 75mΩ On-resistance
  • Built-in soft-start with 0.6ms typical rise time
  • Fault report (FLG) with blanking time (6ms Typ.)
  • Thermally efficient low profile package
  • Level 1 per J-STD-020 moisture sensitivity
  • Finish–matte tin-plated leads, solderable per MILSTD-202, Method 208 terminals
  • Totally lead-free and fully RoHS compliant
  • Halogen and antimony free


  • Integrated load switches in ultrabook PCs
  • Power-up/down sequencing in ultrabook PCs
  • Notebooks
  • Netbooks
  • Set-top boxes
  • SSD (Solid State Drives)
  • Consumer electronics
  • Tablet PCs
  • Telecom systems

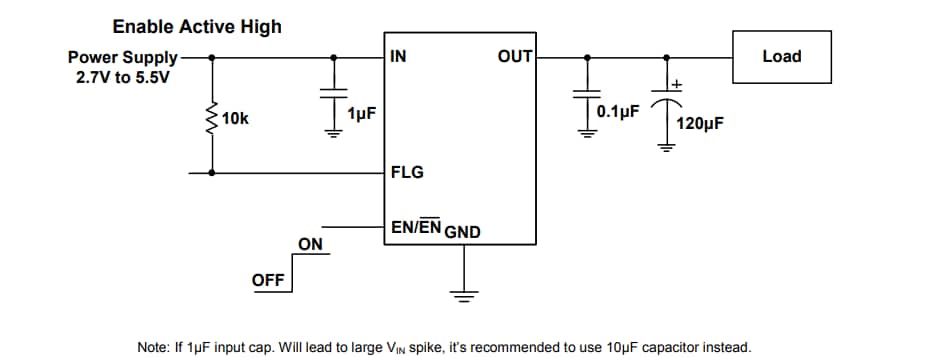

Typical Applications Circuit

Diodes Incorporated AP22816/17/18 Power Distribution Load Switches

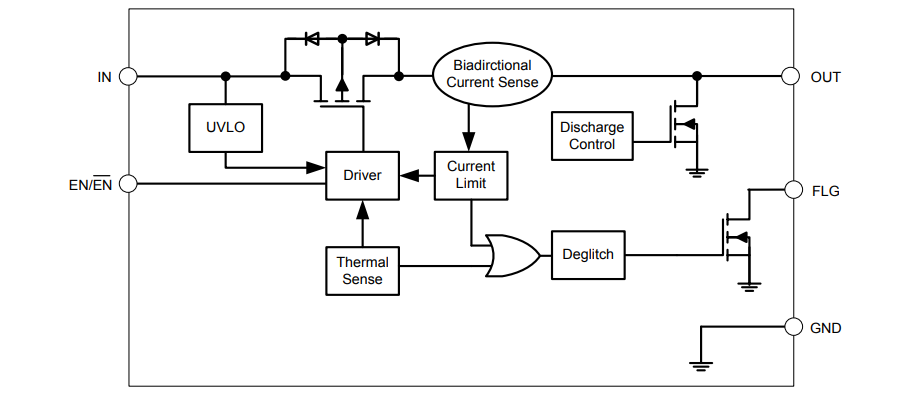

Functional Block Diagram

Block Diagram - Diodes Incorporated AP22816/17/18 Power Distribution Load Switches

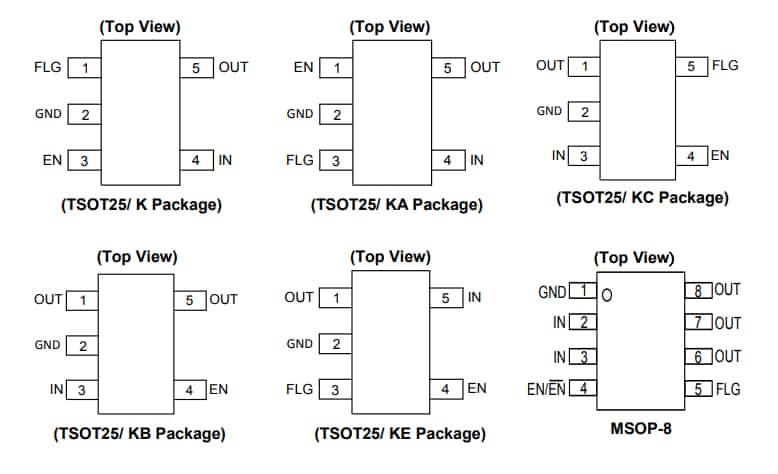

Pin Assignments

Diodes Incorporated AP22816/17/18 Power Distribution Load Switches
