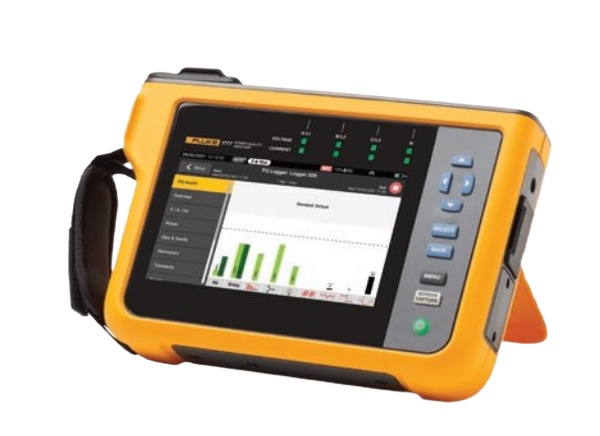

Fluke 1770 Power Quality Analyzers

Fluke 1770 Power Quality Analyzers feature four inputs, ±8kV measurement range, and DC to 1MHz bandwidth range. These analyzers offer automatic measurements, a straightforward user interface and setup, and a simplified reporting platform. The 1770 series analyzers can be powered directly from the measurement circuit, eliminating the need for a power outlet or the use of a lengthy extension cord. Fluke 1770 Series Power Quality Analyzers come standard with the powerful Fluke Energy Analyze Plus software, which is designed to eliminate the hassles found with other multi-purpose application software.


  • Automatic measurements
  • Straightforward user interface and setup
  • Simplified reporting platform
  • Powered directly from the measurement circuit
  • High-speed voltage transient capture


  • Energy surveys and load testing
  • Harmonic surveys
  • Nuisance circuit breaker tripping
  • Power utility power quality surveys
  • Discovery of equipment failures caused by transients


  • 4 inputs
  • 5MΩ or 10MΩ input impedance
  • 24-bit resolutions
  • 80kS/s at 50/60Hz sampling frequency
  • ±8kV measurement range
  • DC to 1MHz bandwidth
  • 20A to 2000A DC current range
  • -10°C to +50°C operating temperature range
