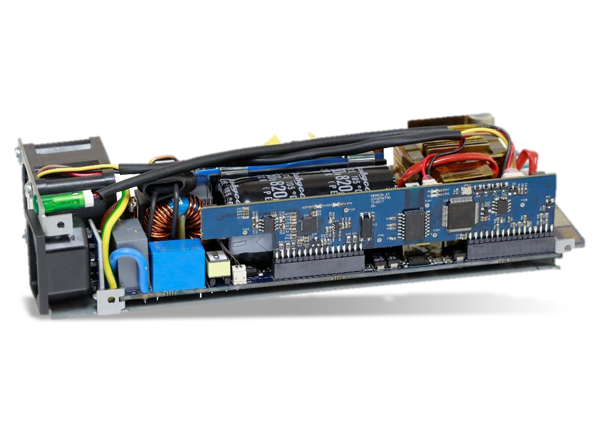

Infineon Technologies EVAL_1K6W_PSU_G7_DD Evaluation Board
Infineon EVAL_1K6W_PSU_G7_DD Evaluation Board is a complete system solution for a 1600W server power supply (PSU) which achieves the 80Plus® Titanium® standard. The EVAL_1K6W_PSU_G7_DD Evaluation Board is an optimized form, fit, and function platform for server applications. The power supply is composed of a continuous conduction mode (CCM) bridgeless power factor corrector (PFC) using a bi-directional switch and a half-bridge LLC DC-DC resonant converter. The Board features an input voltage of 176-265VAC and an output voltage of 12.2VDC. The EVAL_1K6W_PSU_G7_DD Evaluation Board offers higher efficiency and reduced heat dissipation.
Features
- A complete system solution for a 1600W server power supply (PSU)
- Higher efficiency and reduced heat dissipation
- Board Components
- 600V CoolMOS™ G7 superjunction MOSFET
- CoolSiC™ Schottky diode G6 650V
- OptiMOS™ 6 40V MOSFET
- 1EDI EiceDRIVER™ isolated gate driver IC
- 2EDN EiceDRIVER™ non-isolated gate driver IC
- XMC1402 and XMC4200 microcontrollers
- Quasi-resonant CoolSET™ flyback controller
Applications
- Server
On the Board
Infineon Technologies OptiMOS™ 6 Power MOSFETs
Offer next-generation, cutting-edge innovation and best-in-class performance.
Infineon Technologies CoolSiC™ 650V Schottky 6th Generation Diodes
Features a proprietary diffusion soldering process in a more compact design.
Infineon Technologies CoolMOS™ C7 Gold (G7) Power MOSFETs
Housed in the new SMD TO-Leadless (TOLL) package using the Kelvin source concept.
Infineon Technologies Quasi Resonant CoolSET™ Power ICs
Optimized for off-line switch power supplies in cascode configurations.
Infineon Technologies XMC™1400 Industrial Series MCUs
Address the real-time control needs of motor control and digital power conversion.
Infineon Technologies 2ED EiceDRIVER™ 2-Channel MOSFET Driver ICs
The crucial link between Control ICs and powerful MOSFET and GaN switching devices.
Infineon Technologies 1-Channel EiceDRIVER™ MOSFET Gate Driver ICs
The crucial link between control ICs, powerful MOSFET, and GaN switching devices.
