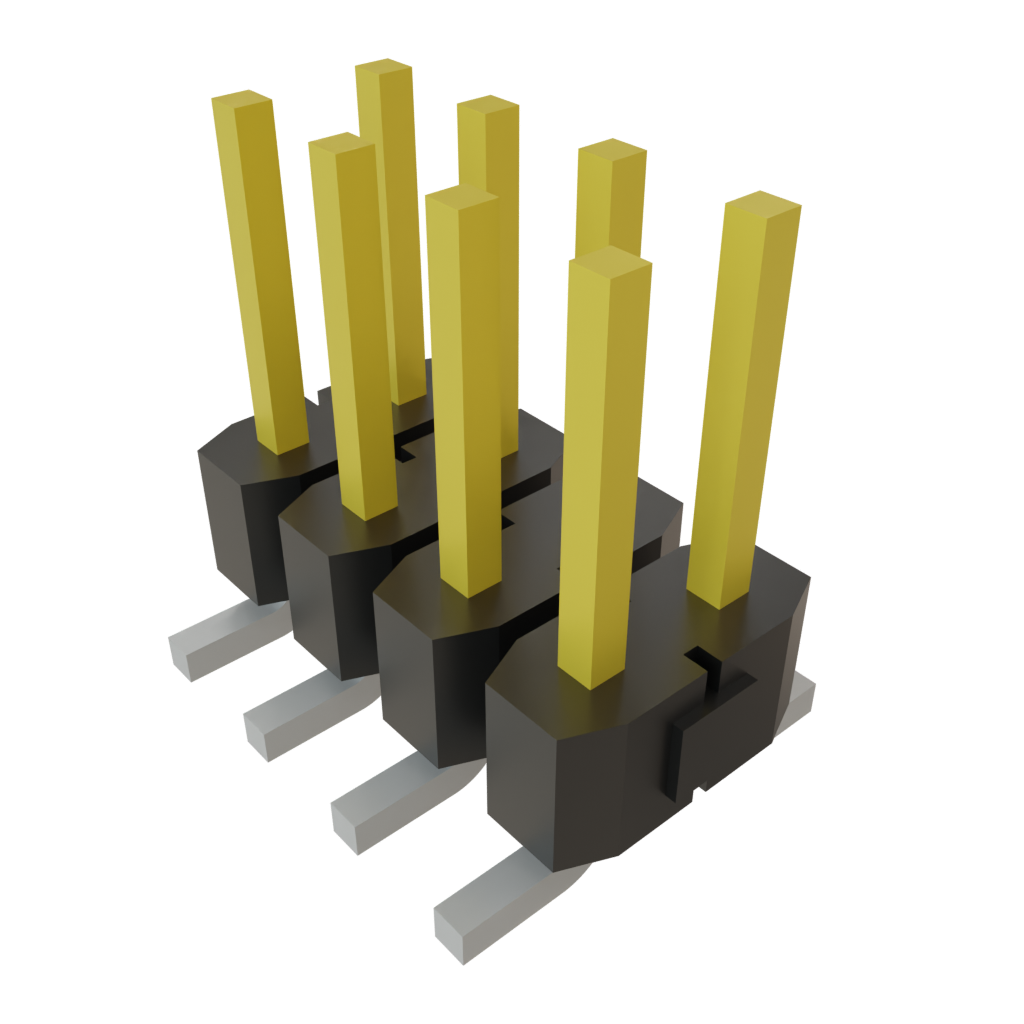

TSM-104-01-S-DV

Name: Samtec TSM-104-01-S-DV
Brand: Samtec
SKU: 200-TSM10401SDV
Price: 1.32 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-TSM10401SDV

Mfr. No:

TSM-104-01-S-DV

Mfr.:

Samtec

Description:

Headers & Wire Housings .100 Surface Mount Terminal Strip

Datasheet:

TSM-104-01-S-DV Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec TSM-104-01-S-DV

In Stock: 2.307

Stock:: 2.307 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 2 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,32 €	1,32 €
	1,15 €	65,55 €
	1,03 €	117,42 €
	0,877 €	449,90 €
	0,707 €	725,38 €
	0,675 €	1.385,10 €

Alternative Packaging

Mfr. Part No.:

TSM-104-01-S-DV-TR

Packaging:

Reel, Cut Tape, MouseReel

Availability:

In Stock

Price:

1,42 €

Min:

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Pin Header
Number of Positions:	8 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	2 Row
Mounting Style:	SMD/SMT
Termination Style:	Solder Pin
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Mating Post Length:	5.84 mm (0.23 in)
Series:	TSM
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Tube
Brand:	Samtec
Contact Material:	Phosphor Bronze
Current Rating:	4.1 A to 5.4 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	57
Subcategory:	Headers & Wire Housings
Voltage Rating:	495 VAC
Unit Weight:	158,880 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Technical Resources

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

TSM .100" (2.54mm) SMT .025" (0.635 mm) Square Post Headers
