MTA Connector System

TE Connectivity's (TE) Mass Termination Assembly (MTA) Connector System is a wire-to-board and wire-to-wire system based on insulation displacement contact (IDC) technology. MTA 100 connectors have contacts in a single row on .100 inch (2.54mm) centers, while MTA 156 connector contacts are in a single row on .156 inch (3.96mm) centers. These connectors provide wire feed-through capability for daisy-chain applications. IDCs are used to terminate a range of conductor sizes. Ribbon cable can also be terminated when the appropriate receptacle assembly and strain relief cover are used. Header assemblies for board-mount applications include right-angle and vertical-mount products, which are available in through-hole and surface-mount configurations. TE MTA connectors are ideal for household appliances, fitness equipment, garage door openers, gasoline pumps, coin changers, and vending machines.

Results: 2.414
Select Image Part #
 Mfr.
Description Datasheet Availability Pricing (EUR) Filter the results in the table by unit price based on your quantity.
Qty. RoHS ECAD Model Product
Type
Number of Positions
Pitch
Number of Rows
Row Spacing
Mounting Style
Termination Style
Mounting Angle
Contact Gender
Contact Plating
Mating Post Length
Termination Post Length
Series
Tradename
Application
Wire Gauge
Minimum Operating Temperature
Maximum Operating Temperature
Packaging
TE Connectivity / AMP Headers & Wire Housings HDR 02P VRT SHROUD
Datasheet
3.390In Stock
6.000Expected 4/27/2026
Min.: 1
Mult.: 1

Headers Shrouded 2 Position 2.54 mm (0.1 in) 1 Row Through Hole Solder Pin Straight Pin (Male) Tin 3.56 mm (0.14 in) MTA-100 MTA Wire-to-Board - 55 C + 105 C Bulk
TE Connectivity / AMP Headers & Wire Housings HDR 05P VRT SHROUD
Datasheet
1.850In Stock
Min.: 1
Mult.: 1

Headers Shrouded 5 Position 2.54 mm (0.1 in) 1 Row Through Hole Solder Pin Straight Pin (Male) Tin 3.56 mm (0.14 in) MTA-100 MTA Wire-to-Board - 55 C + 105 C

TE Connectivity / AMP Headers & Wire Housings HDR VERT 7P TIN
Datasheet
1.351In Stock
Min.: 1
Mult.: 1

Headers Shrouded 7 Position 2.54 mm (0.1 in) 1 Row Through Hole Solder Pin Straight Pin (Male) Tin 3.56 mm (0.14 in) MTA-100 MTA Wire-to-Board - 55 C + 105 C


TE Connectivity / AMP Headers & Wire Housings 05P MTA156 SHRD HDR ASSY SQ SN
Datasheet
522In Stock
Min.: 1
Mult.: 1

Headers Shrouded 5 Position 3.96 mm (0.156 in) 1 Row Through Hole Solder Pin Straight Pin (Male) Tin 3.18 mm (0.125 in) MTA-156 MTA Wire-to-Board - 55 C + 105 C


TE Connectivity / AMP Headers & Wire Housings 04P MTA156 SHRD HDR ASSY LF
Datasheet
469In Stock
Min.: 1
Mult.: 1

Headers Shrouded 4 Position 3.96 mm (0.156 in) 1 Row Through Hole Solder Pin Straight Pin (Male) Tin 3.18 mm (0.125 in) MTA-156 MTA Wire-to-Board - 55 C + 105 C

TE Connectivity / AMP Headers & Wire Housings 20P HEADER
Datasheet
618In Stock
Min.: 1
Mult.: 1

Headers Shrouded 20 Position 2.54 mm (0.1 in) 1 Row Through Hole Solder Pin Straight Pin (Male) Tin 3.56 mm (0.14 in) MTA-100 MTA Wire-to-Board - 55 C + 105 C
TE Connectivity / AMP Headers & Wire Housings 20P COVER MTA 100
Datasheet
250In Stock
Min.: 1
Mult.: 1

Accessories 20 Position 2.54 mm (0.1 in) MTA-100 MTA - 40 C + 85 C
TE Connectivity / AMP Headers & Wire Housings 9P 26AWG TIN CLSD W/O TAB W/BLUE STRPE
Datasheet
120In Stock
Min.: 1
Mult.: 1

Wire Housings Receptacle Housing 9 Position 2.54 mm (0.1 in) 1 Row Cable Mount / Free Hanging IDC Socket (Female) Tin MTA-100 MTA Wire-to-Board 26 AWG - 55 C + 105 C
TE Connectivity / AMP Headers & Wire Housings 08P MTA156 HDR ASSY FL/STR SN
Datasheet
402In Stock
Min.: 1
Mult.: 1

Headers Plug Housing 8 Position 3.96 mm (0.156 in) 1 Row Through Hole Solder Pin Straight Pin (Male) Tin 3.18 mm (0.125 in) MTA-156 MTA Wire-to-Board - 55 C + 105 C Bulk
TE Connectivity / AMP Headers & Wire Housings 04CIR MTA156 ASSY ON
Datasheet
4.275In Stock
Min.: 1
Mult.: 1
Reel: 1.100

Wire Housings Receptacle Assembly 4 Position 3.96 mm (0.156 in) Cable Mount / Free Hanging IDC Socket (Female) Tin MTA-156 MTA 18 AWG Reel, Cut Tape
TE Connectivity / AMP Headers & Wire Housings FEED THRU W/O TAB 5P white tin 24 AWG
Datasheet
2.066In Stock
Min.: 1
Mult.: 1

Wire Housings Receptacle Housing 5 Position 2.54 mm (0.1 in) 1 Row Cable Mount / Free Hanging IDC Socket (Female) Tin MTA-100 MTA Wire-to-Board 24 AWG - 55 C + 105 C Bulk
TE Connectivity / AMP Headers & Wire Housings FEED THRU W/O TAB 2P blue tin 26 AWG
Datasheet
5.357In Stock
Min.: 1
Mult.: 1

Wire Housings Receptacle Housing 2 Position 2.54 mm (0.1 in) 1 Row Cable Mount / Free Hanging IDC Socket (Female) Tin MTA-100 MTA Wire-to-Board 26 AWG - 55 C + 105 C Bulk
TE Connectivity / AMP Headers & Wire Housings FEED THRU W/O TAB 4P blue tin 26 AWG
Datasheet
230In Stock
Min.: 1
Mult.: 1

Wire Housings Receptacle Housing 4 Position 2.54 mm (0.1 in) 1 Row Cable Mount / Free Hanging IDC Socket (Female) Tin MTA-100 MTA Wire-to-Board 26 AWG - 55 C + 105 C Bulk
TE Connectivity / AMP Headers & Wire Housings FEED THRU W/O TAB 2P green tin 28 AWG
Datasheet
3.008In Stock
Min.: 1
Mult.: 1

Wire Housings Receptacle Housing 2 Position 2.54 mm (0.1 in) 1 Row Cable Mount / Free Hanging IDC Socket (Female) Tin MTA-100 MTA Wire-to-Board 28 AWG - 55 C + 105 C Bulk
TE Connectivity / AMP Headers & Wire Housings HDR 2P VRT F-LOCK SQ
Datasheet
725In Stock
Min.: 1
Mult.: 1

Headers Plug 2 Position 3.96 mm (0.156 in) 1 Row Through Hole Solder Pin Straight Pin (Male) Gold 3.18 mm (0.125 in) MTA-156 MTA Wire-to-Board - 55 C + 105 C


TE Connectivity / AMP Headers & Wire Housings 03P HDR VERT AU
Datasheet
988In Stock
Min.: 1
Mult.: 1

Headers Plug 3 Position 3.96 mm (0.156 in) 1 Row Through Hole Solder Pin Straight Pin (Male) Gold 3.18 mm (0.125 in) MTA-156 MTA Wire-to-Board - 55 C + 105 C
TE Connectivity / AMP Headers & Wire Housings HDR 05P VRT F-LOCK
Datasheet
174In Stock
2.000Expected 5/26/2026
Min.: 1
Mult.: 1

Headers Plug 5 Position 3.96 mm (0.156 in) 1 Row Through Hole Solder Pin Straight Pin (Male) Gold 3.18 mm (0.125 in) MTA-156 MTA Wire-to-Board - 55 C + 105 C


TE Connectivity / AMP Headers & Wire Housings 03P MTA156 HDR ASSY FL/ST LF
Datasheet
107In Stock
2.000Expected 6/12/2026
Min.: 1
Mult.: 1

Headers Unshrouded 3 Position 3.96 mm (0.156 in) 1 Row Through Hole Solder Pin Straight Pin (Male) Gold 3.18 mm (0.125 in) MTA-156 MTA Wire-to-Board - 55 C + 105 C


TE Connectivity / AMP Headers & Wire Housings 06P MTA156 HDR ASSY FL/ST LF
Datasheet
373In Stock
Min.: 1
Mult.: 1

Headers Unshrouded 6 Position 3.96 mm (0.156 in) Solder Pin Straight Pin (Male) Gold 3.18 mm (0.125 in) MTA-156 MTA Wire-to-Board

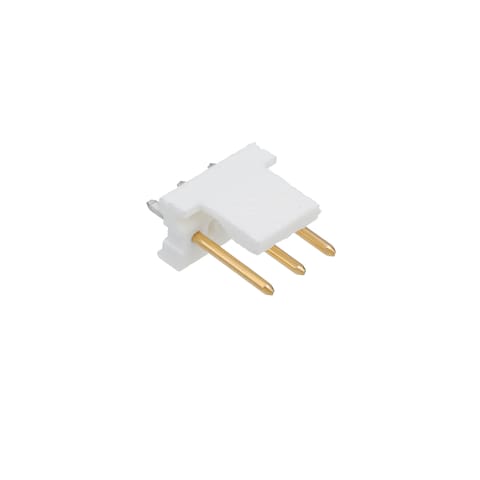

TE Connectivity / AMP Headers & Wire Housings 03P MTA156 HDR ASSY FL/RA LF
Datasheet
205In Stock
Min.: 1
Mult.: 1

Headers Unshrouded 3 Position 3.96 mm (0.156 in) 1 Row Through Hole Solder Pin Right Angle Pin (Male) Gold 3.18 mm (0.125 in) MTA-156 MTA Wire-to-Board - 55 C + 105 C


TE Connectivity / AMP Headers & Wire Housings 05P MTA100 HDR ASSY FL/RA LF
Datasheet
197In Stock
Min.: 1
Mult.: 1

Headers Unshrouded 5 Position 2.54 mm (0.1 in) 1 Row Through Hole Solder Pin Right Angle Pin (Male) Gold 3.56 mm (0.14 in) MTA-100 MTA Wire-to-Board - 55 C + 105 C
TE Connectivity / AMP Headers & Wire Housings REC 02P C/E 22AWG W/O TABS
Datasheet
517In Stock
Min.: 1
Mult.: 1

Wire Housings Receptacle Housing 2 Position 2.54 mm (0.1 in) 1 Row Cable Mount / Free Hanging IDC Socket (Female) Gold MTA-100 MTA Wire-to-Board 22 AWG - 55 C + 105 C Bulk
TE Connectivity / AMP Headers & Wire Housings REC 06P C/E 22AWG W/O TABS
Datasheet
810In Stock
Min.: 1
Mult.: 1

Wire Housings Receptacle Housing 6 Position 2.54 mm (0.1 in) 1 Row Cable Mount / Free Hanging IDC Socket (Female) Gold MTA-100 MTA Wire-to-Board 22 AWG - 55 C + 105 C
TE Connectivity / AMP Headers & Wire Housings FRCTN LK HDR STR 5P Square post gold
Datasheet
711In Stock
Min.: 1
Mult.: 1

Headers Plug Housing 5 Position 3.96 mm (0.156 in) 1 Row Through Hole Solder Pin Straight Pin (Male) Gold 3.18 mm (0.125 in) MTA-156 MTA Wire-to-Board - 55 C + 105 C

TE Connectivity / AMP Headers & Wire Housings HDR 3 POS VERT GOLD
Datasheet
40In Stock
Min.: 1
Mult.: 1

Headers Plug Housing 3 Position 3.96 mm (0.156 in) 1 Row Through Hole Solder Pin Straight Pin (Male) Gold 3.18 mm (0.125 in) MTA-156 MTA Wire-to-Board - 55 C + 105 C
