Littelfuse AQ3118-02JTG Low-Capacitance TVS Diode Array
Littelfuse AQ3118-02JTG Low-Capacitance Transient Voltage Suppressor (TVS) Diode Array features a robust design that provides two-channel protection against electrostatic discharge (ESD) and lightning-induced surges. This device safely absorbs repetitive ESD strikes at the maximum level per IEC 61000-4-2 (level 4, ±8kV contact discharge) without performance degradation and safely dissipates 2A of 8/20μs surge current per IEC 61000-4-5 2nd edition. The AQ3118-02JTG features a low leakage current of 50nA at 18V and ultra-low I/O-to-I/O capacitance of 0.3pF. This TVS diode array from Littelfuse is AEC-Q101 qualified, PPAP capable, halogen free, lead free, and RoHS compliant. Suitable applications include automotive, USB 2.0 and 3.0, near-field communications (NFC), and ESD protection for RF signals, RF switching, power amplifiers, and antennas.
Features
- Low capacitance
- Provides two-channel protection against ESD and lightning-induced surges
- Robust design
- Low leakage current
- Moisture sensitivity level (MSL) 1
- AEC-Q101 qualified and PPAP capable
- Halogen free, lead free, and RoHS compliant
Applications
- Automotive
- USB 2.0, USB 3.0
- RF signal ESD protection
- RF switching, power amplifier, and antenna ESD protection
- NFC
Specifications
- 50nA leakage current (typical) at 18V
- 0.3pF I/O-to-I/O capacitance (typical at VR = 0V)
- 2A (8/20μs) maximum surge tolerance, IEC 61000- 4-5 2nd edition
- ±10kV contact and ±15kV air ESD, IEC 61000-4-2
- 40A (5/50ns) EFT, IEC 61000-4-4
- -40°C to +150°C operating temperature range
Pinout
Functional Block Diagram

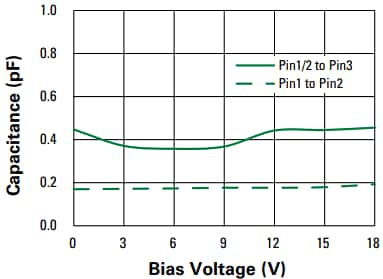

Capacitance vs. Reverse Bias
