Microchip Technology PIC24FJxxGx 16-bit Microcontrollers

Microchip Technology PIC24FJ64Gx, PIC24FJ128Gx, and PIC24FJ256Gx 16-bit Microcontrollers (MCUs) are ideal for low power and connectivity applications. These devices offer multiple I²C, SPI, and UART peripherals, and multiple independent timers. These MCUs are available with 8kB to 16kB RAM memory for buffering and 64kB to 256kB Enhanced Flash program memory. The PIC24FJxxGx family of microcontrollers are offered in in 28, 44, 64, 80, 100, and 121 pin packages for design flexibility.

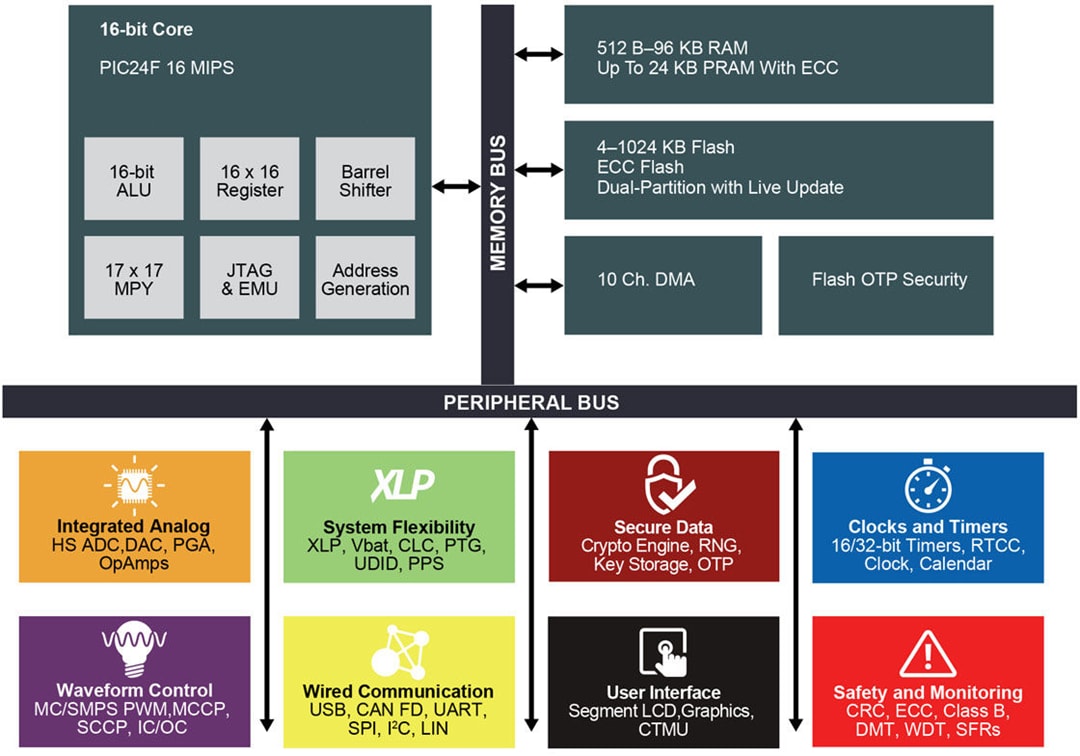

Features

CPU Speed 16MIPS
Memory Type Flash
Program Memory
- PIC24FJ64Gx 64KB
- PIC24FJ128Gx 128KB
- PIC24FJ256Gx 256KB
RAM Bytes
- PIC24FJ64Gx 8192
- PIC24FJ128Gx Up to 24576
- PIC24FJ256Gx Up to 16384
Temperature Range -40ºC to 125ºC
Operating Voltage Range 2.0V to 3.6V
System Management Features BOR, LVD
Internal Oscillator 8MHz, 31kHz
nanoWatt Features: Low Sleep/Fast Wake/Fast Control
Digital Communication Peripherals 2x UART, 2x SPI, 2x I²C
Analog Peripherals 1-A/D 10x10-bit @ 500(ksps)
Comparators
- PIC24FJ64Gx 2
- PIC24FJ128Gx and PIC24FJ256Gx Up to 3

Capture/Compare/PWM Peripherals
- PIC24FJ64Gx and PIC24FJ128Gx 5/5
- PIC24FJ256Gx 6/6
PWM Resolution bits 16
Timers
- PIC24FJ64Gx 5x 16-bit, 2x 32-bit
- PIC24FJ128Gx Up to 23x 16-bit, Up to 11x 32-bit
- PIC24FJ256Gx Up to 31x 16-bit, Up to 15x 32-bit
Parallel Port: PMP
Cap Touch Channels
- PIC24FJ64Gx and PIC24FJ128Gx: 10
- PIC24FJ256Gx 24
Package options
- 28-pin SOIC, SPDIP, SSOP, QFN
- 44-pin TQFP, QFN
- 64-pin TQFP, QFN
- 80-pin TQFP, QFN
- 100-pin TQFP
- 121-pin BGA
