Murata NXP i.MX Eval Platforms
Murata has partnered with Embedded Artists to integrate Wi-Fi® and BLUETOOTH® into existing NXP i.MX Development Platforms. The i.MX Platforms, based on the Arm® Cortex® cores, are designed to bridge the gap between the performance of applications processors and the flexible usability of microcontrollers (MCUs) without increasing costs or power consumption.
The µSD-M.2 adapter connects to the µSD slot on the NXP i.MX Platforms, which provides power and WLAN-SDIO. The Murata adapter provides an M.2 connector, allowing application developers to connect the Embedded Artists Types 1DX, 1MW, 1LV, and 1CX M.2 EVBs, which provide IEEE 802.11/b/g/n and BT/BLE connectivity.
Features
- Murata µSD-M.2 adapter connects to the µSD slot on i.MX Evaluation Platforms
- Provides M.2 connector
- µSD connection provides power and WLAN-SDIO
- Optional USB power supply
- Optional Arduino header power supply
- WLAN JTAG header for debugging
- BT disable jumper for WLAN-only mode
- BT UART TX/RX and WLAN/BT CTRL Arduino header
- BT UART RTS/CTS Arduino header
- 20-pin FFC ribbon cable connector
- Optional BT PCM and WLAN/BT debug signals
- Power LED indicator
Videos
Solution Partners
Wi-Fi/BT Solution Example Setup

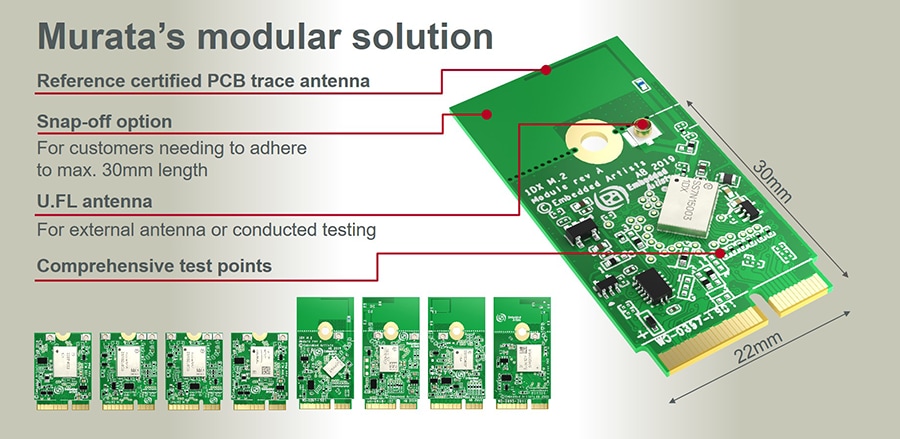

Modular Solution
Range of M.2 Modules
EVB Application Matrix
PLATFORMS REQUIRING MICROSD-M.2 ADAPTER KIT
NXP Semiconductors i.MX RT1050 EVK Evaluation Kit (MIMXRT1050-EVKB)
Development platform designed to allow full evaluation of the NXP i.MX RT1050 Crossover Processor.
NXP Semiconductors MIMXRT1020-EVK Evaluation Kit
Development platform designed to allow full evaluation of the i.MX RT1020 Crossover Processor.
NXP Semiconductors MIMXRT1064-EVK Development Board
A 4-layer through-hole USB-powered PCB.
NXP Semiconductors MCIMX6ULL-EVK Evaluation Kit
Demonstration and development platform based on the i.MX 6ULL applications processor.
NXP Semiconductors i.MX 6 Development Boards
Development and prototyping platforms based on the single, dual, and quadcore i.MX 6 Processors.
Embedded Artists M.2 EVBs
Embedded Artists Type 1LV M.2 EVB
Based on the Murata LBEE59B1LV Module, offering 802.11 a/b/g/n Wi-Fi + BLUETOOTH/BLE 5.0.
MICROSD-M.2 ADAPTER KIT
Murata uSD-M.2 Adapter Kit
Allows customised Wi-Fi and Bluetooth for NXP's i.MX Platforms..

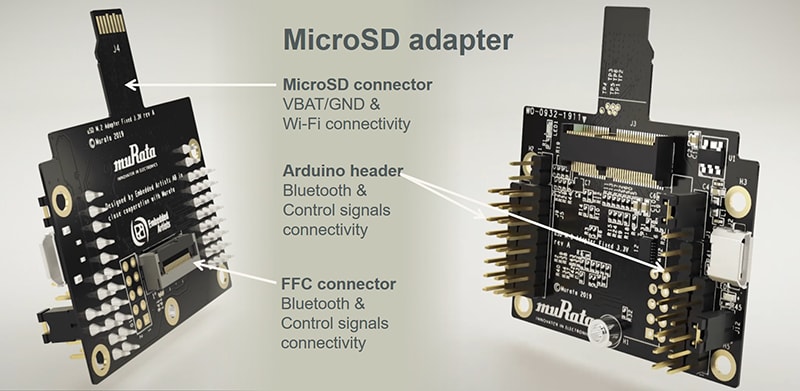

MICROSD-M.2 Adapter Example
