Nexperia 2N7002AK N-Channel Trench MOSFETs
Nexperia 2N7002AK N-Channel Trench MOSFETs are enhancement mode Field-Effect Transistors (FETs) in small surface-mounted (SMD) plastic packages using Trench MOSFET technology. These AEC-Q101-qualified devices offer logic-level compatibility in a wide -55°C to +175°C junction temperature range. Applications for Nexperia 2N7002AK N-Channel Trench MOSFETs include relay and high-speed line drivers, low-side load switches, and switching circuits.
Features
- Logic-level compatible
- Extended temperature range up to +175°C
- Trench MOSFET technology
- Electrostatic Discharge (ESD) protection
- AEC-Q101 qualified
- RoHS compliant
Applications
- Relay drivers
- High-speed line drivers
- Low-side load switches
- Switching circuits
Specifications
- 60V maximum drain-source voltage
- ±20V gate-source voltage
- 220mA to 240mA maximum drain current range
- 3Ω maximum drain-source on-state resistance
- 500V maximum ESD voltage (HBM)
- Package options

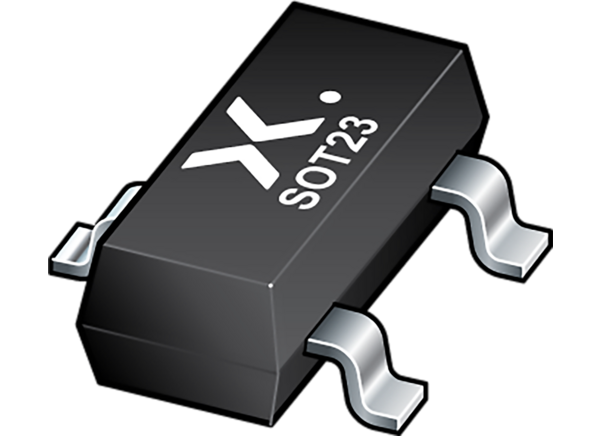

- 2.9mm x 1.3mm x 1mm, 1.9mm pitch, 3-terminal SOT23
- 2.1mm x 1.25mm x 0.95mm, 0.65mm pitch, 6-lead SOT363
- 2mm x 1.25mm x 0.95mm, 1.3mm pitch, 3-lead SOT323
Videos
Published: 2024-03-19
