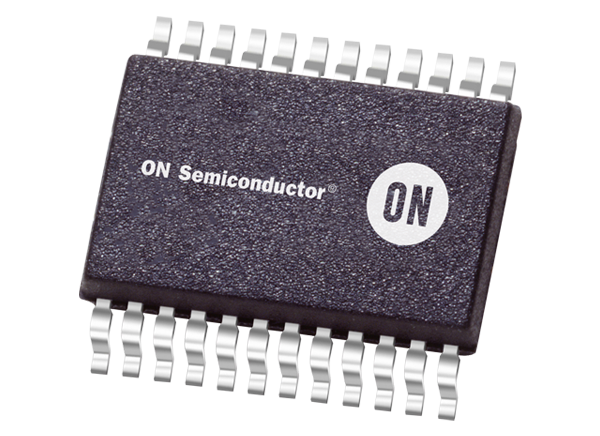

onsemi NCV7723B 6-Channel Half-Bridge Driver

onsemi NCV7723B 6-Channel Half-Bridge Driver includes protection features designed specifically for automotive and industrial motion control applications. This driver has independent controls and diagnostics and can be operated in forward, reverse, brake, and high-impedance states. onsemi NCV7723B Half-Bridge Driver is controlled via a 16-bit SPI interface and is daisy chain-compatible. This driver offers low quiescent current sleep mode, undervoltage and overvoltage lockout, integrated freewheeling protection (LS and HS), overcurrent protection, and overtemperature protection. The NCV7723B half-bridge driver is ideal for use in automotive, industrial, and DC motor management for HVAC applications.

Features

Low quiescent current sleep mode
High-side and low-side drivers connected in half-bridge configurations
Integrated freewheeling protection (LS and HS)
500mA typical and 1.1A peak current
0.8Ω (typical) R_DS(on)
OUT1 and OUT2 external PWM control
5MHz SPI communication
16-bit frame error detection
Daisy chain compatible with multiple 8-bit devices

Compliant with 3.3V and 5V systems
Undervoltage and overvoltage lockout
Per channel fault reporting
Overcurrent protection
Overtemperature protection
Underload detection (HS and LS)
Exposed pad package
NCV prefix for automotive and other applications requiring unique site and control change requirements
- AEC-Q100 qualified
- PPAP capable
Lead-free device
