onsemi NL27WZ86 Dual 2-Input Exclusive OR Logic Gates

onsemi NL27WZ86 Dual 2-Input Exclusive OR (XOR) Logic Gates are high-performance gates operating from a 1.65V to 5.5V supply and a wide -55°C to +125°C temperature range. The onsemi NL27WZ86 devices are an essential component in many digital designs because of the ability to detect differences between inputs. These devices reduce system power requirements with a near-zero static supply current and are available in US8, UDFN8, and UQFN8 packages.

Features

  • Designed for 1.65V to 5.5V VCC operation
  • 2.9ns tPD at VCC = 5V typical
  • Inputs/outputs overvoltage tolerant up to 5.5V
  • IOFF supports partial-power-down protection
  • 24mA source/sink at 3.0V
  • ±100mA latch-up performance
  • -55°C to +125°C operating temperature range
  • Available in US8, UDFN8, and UQFN8 packages
  • Chip complexity < 100 FETs
  • Near zero static supply current substantially reduces system power requirements
  • Moisture Sensitivity Level (MSL) 1
  • UL 94V-0 flammability rating
  • -Q suffix for automotive and other applications requiring unique site and control change requirements, AEC-Q100 qualified and PPAP capable
  • Lead-free, Halogen-free/BFR-free, and RoHS-compliant

Applications

  • Data comparison
  • Arithmetic circuits
  • Parity generation and checking
  • Digital signal processing
  • Control logic
  • Data encryption
  • Signal manipulation
  • Switch logic
  • Finite state machines

Logic Symbol

Mechanical Drawing - onsemi NL27WZ86 Dual 2-Input Exclusive OR Logic Gates

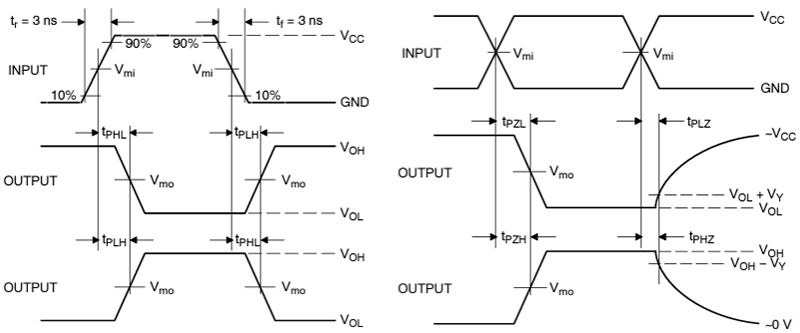

Switching Waveforms

Mechanical Drawing - onsemi NL27WZ86 Dual 2-Input Exclusive OR Logic Gates
Published: 2024-10-25 | Updated: 2024-11-14
