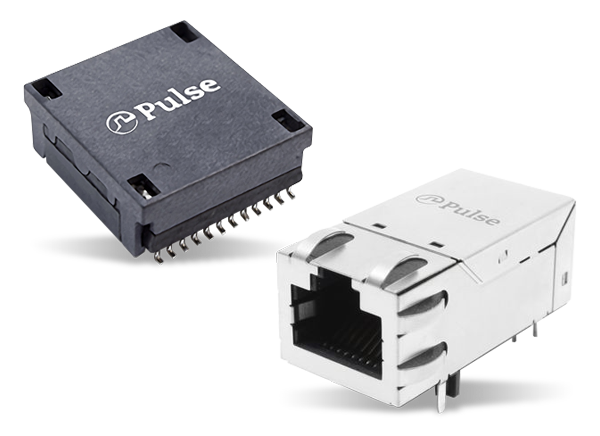

Pulse Electronics HDBaseT Transformer & Connector Modules
Pulse Electronics HDBaseT Connector Module and 140W Transformer Module provide common mode noise reduction for improved EMI performance and support power over HDBaseT (PoH) applications. Pulse HDBaseT technology enables the 5Play feature set, which includes ultra-high definition 4K video, audio, 100BASE-TX Ethernet, various control signals, and up to 100W power on a single 100m CAT5e/6 cable.
Features
- Compatible with Valens chipsets
- Supports Power Over HDBaseT up to 140W
- Suitable for a variety of HDBaseT applications
- High-volume production
- Industry-standard footprint
Applications
- Blu-ray, DVDs, recorders
- Displays
- Digital set-top boxes
- PCs
- Projectors
- Audio/visual receivers
- Game consoles
- HDMI repeaters, splitters, switches

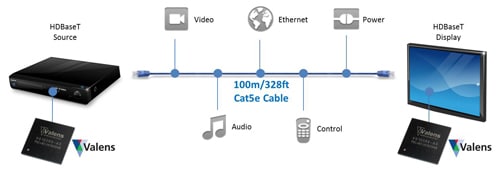

HDBaseT Overview
Related Transformers
Pulse Electronics HDBaseT Transformers
Provides isolation and common mode noise reduction.
Related Solutions
Pulse Electronics PoE/PoE+/4P Solutions
Designed and manufactured to comply with IEEE802.3 and ANSI X3.263 standards.
YAGEO Group Passive Solutions for AI
Participates in the AI revolution by supporting the power needs of AI-driven hardware devices.
View Results ( 6 ) Page
| Part Number | Datasheet | Description |
|---|---|---|
| HD8008NL |  |
Audio Transformers / Signal Transformers HDBase-T SMD PoE 100uH 1-Port |
| HD8004FNL | |
Audio Transformers / Signal Transformers HDBase-T SMD PoE+ 180uH 1-Port |
| HD8004FNLT | |
Audio Transformers / Signal Transformers HDBase-T PoE+ SMD 1-Port 180uH |
| JK0-8001NL | |
Modular Connectors / Ethernet Connectors CON RJ45 1X1 Tab up HDBaseT 30W PoE |
| HD8005FNL | |
Audio Transformers / Signal Transformers HDBase-T SMD PoE+ 180uH 1-Port |
| HD8006FNL | |
Power Switch ICs - POE/LAN SMT MDL Single HDBaseT 140W PoE |
Published: 2018-03-27
| Updated: 2025-02-21
