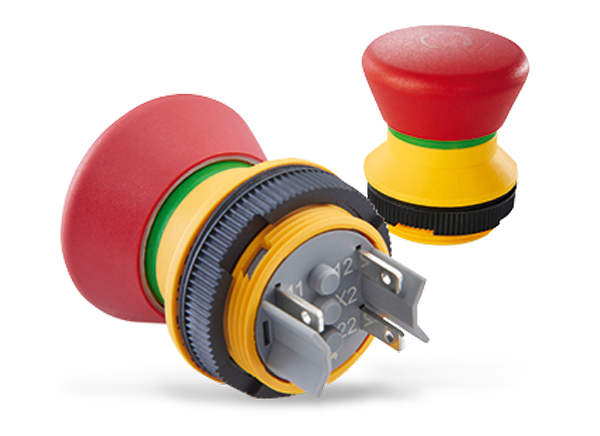

RAFI LUMOTAST 22 Emergency Switches
RAFI LUMOTAST 22 Switches are ideal for applications where an emergency stop or emergency off is required. The extremely compact switches feature quick-connect terminals and a low mounting depth of 17.6mm. 2 NC, 2 NC + 1 NO contact configurations are available. RAFI LUMOTAST 22 pushbuttons comply with IEC 60 204, IEC 60 073, IEC 60 947, and VDE 0113 Part 1.
Features
- 17.6mm mounting depth
- Extremely compact
- Night design possible
Applications
- Measurement-control-regulation
- Machine and plant engineering
- Automotive industry
Specifications
- IP65 water stream degree of protection front-facing
- Switching elements with silver contacts (max. 250V/4A)
- Contact configurations: 2 NC, 2 NC + 1 NO
- Quick-connect terminal
- In compliance with DIN EN ISO 13850
Associated Switches
RAFI Emergency Stop Switches
Quickly and reliably switch machines and systems to a safe state in an emergency.
RAFI LUMOTAST FK Illuminated Switches
Available in pushbuttons and signal lamps, mounting depth behind the front plate as low as 30.7mm.
View Results ( 3 ) Page
| Part Number | Datasheet | Illuminated | Contact Form | Switch Function |
|---|---|---|---|---|
| 1.15.105.011/0000 |  |
Illuminated | DPST | ON - OFF |
| 1.15.105.031/0000 | |
Non-Illuminated | SPDT | ON - OFF |
| 1.15.105.021/0000 | |
Non-Illuminated | SPST | ON - ON - OFF |
Published: 2017-04-25
| Updated: 2022-05-09
