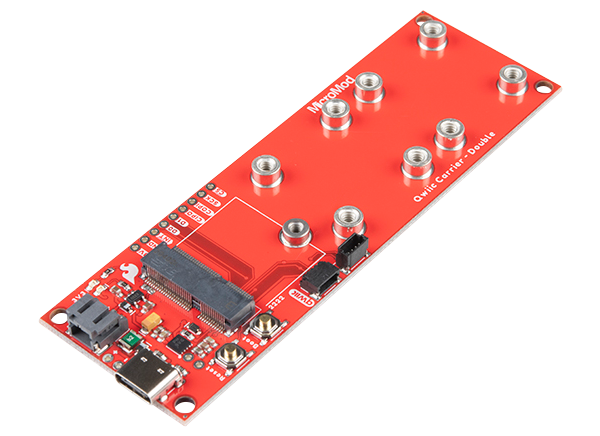

SparkFun DEV-17724 MicroMod Qwiic Carrier Board - Double
SparkFun DEV-17724 MicroMod Qwiic Carrier Board - Double features two Qwiic connectors and eight 4-40 screw inserts to connect and mount Qwiic devices. This MicroMod is a modular interface ecosystem that connects a microcontroller “processor board” to various “carrier board” peripherals. This board includes two ports for the standard 1in by 1in Qwiic breakouts. The DEV-17723 carrier board also includes a USB-C connector, boot/reset buttons, a charge circuit, and a 3.3V 1A voltage regulator.
Features
- M.2 MicroMod connector
- USB-C connector
- 3.3V 1A voltage regulator
- Qwiic connectors
- Boot/reset buttons
- Charge circuit
- Eight 4-40 inserts
Kit Contents
- 1x MicroMod Qwiic carrier board - double
- 1x Phillips #0 M2.5 x 3mm screw
Mechanical Drawing
Videos
Additional Resources
Published: 2021-03-25
| Updated: 2022-10-14
