STMicroelectronics LDK220 Low Dropout (LDO) Voltage Regulators

STMicroelectronics LDK220 Low Dropout (LDO) Voltage Regulators provide a maximum output current of 200mA from an input supply voltage in the range of 2.5V to 13.2V with a typical dropout voltage of 100mV. The LDK220 LDOs are stabilized with a ceramic capacitor on the output. An enable logic control function puts the LDK220 in shutdown mode allowing a total current consumption lower than 1μA. These devices also include a short-circuit constant current limiting and thermal protection. The LDK220 LDOs' very low drop voltage, low quiescent current, and low noise make these devices well-suited for battery-powered applications.

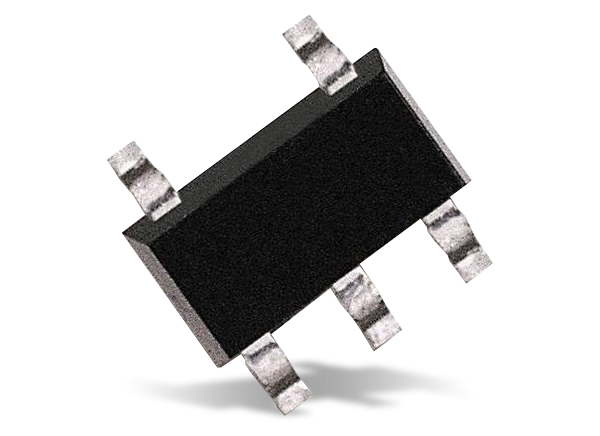

The STMicroelectronics LDK220 Voltage Regulators are offered in SOT23-5L, SOT323-5L, SOT-89, and DFN6 packages for design flexibility.

Features

Input voltage from 2.5V to 13.2V
Very low-dropout voltage (100mV typ. @ 100mA load)
Low quiescent current (typ. 40μA, 1μA in off mode)
Low noise
Output voltage tolerance: ±2.0% @ +25°C
200mA guaranteed output current
Wide range of output voltages; Fixed from 1.2V to 12V with 100mV step and adjustable
