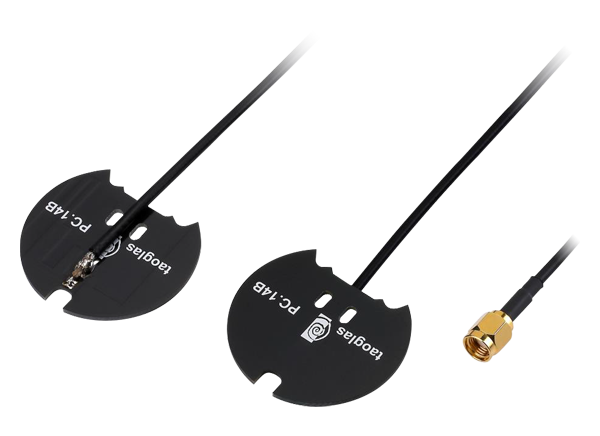

Taoglas PC14 Circular Dual-Band PCB Antenna

Taoglas PC14 Circular Dual-Band PCB Antenna is a high-performance wireless antenna that provides omnidirectional gain across both bands for constant reception and transmission. This antenna features 50Ω impedance, omnidirectional radiation, horizontal polarization, and comes with RG-174 standard cable. The PC14 PCB antenna offers stable efficiency, gain, radiation patterns, and operates from -40°C to 85°C temperature range. This antenna is used in applications such as ZigBee®, internal use in Wi-Fi®, and WLAN worldwide equipment.

Features

  • High-efficiency antenna for Wi-Fi and BLUETOOTH®
  • 3M Rg-174 RP-SMA(M)
  • Stable efficiency, gain, and radiation patterns
  • RoHS Compliant
  • 42mm x 0.8mm dimension

Specifications

  • 50Ω impedance
  • -40°C to 85°C temperature range
  • 2.4GHz to 5.35GHz frequency range

ADDITIONAL RESOURCES

Dimensions Diagram

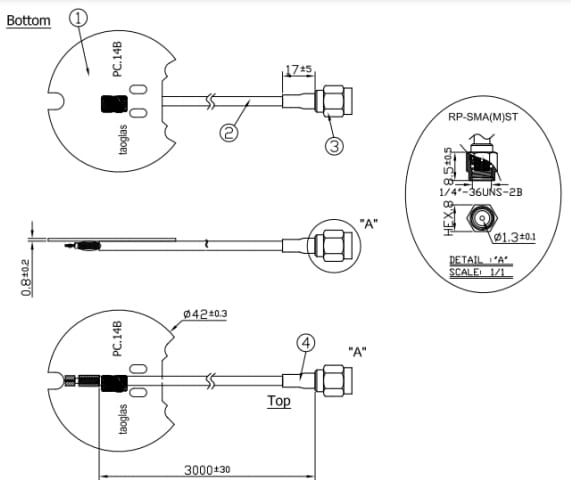

Mechanical Drawing - Taoglas PC14 Circular Dual-Band PCB Antenna
Published: 2021-04-06 | Updated: 2023-01-27
