Texas Instruments DAC539E4W 10-Bit Smart DACs

Texas Instruments DAC539E4W 10-Bit Smart Digital-to-Analog Converters (DACs) come with quad programmable comparator inputs and quad general-purpose outputs. A look-up table maps the comparator inputs to the GPOs. The DAC539E4W also supports a programmable delay to allow the input transitions to settle. These devices provide NVM for storing the configurations. This smart DAC functions without the need for a processor (processor-less operation) using LUT and NVM.

The Texas Instruments DAC539E4W has an automatically detected SPI and I²C interface and an internal reference. The feature set, combined with the low power and tiny package, makes the smart DAC an excellent choice for applications in fault management.

Features

Quad comparator inputs
10-bit independent comparator thresholds
- 1LSB DNL
- Gains of 1x, 1.5x, 2x, 3x, and 4x
Quad General-Purpose Output (GPO)
Look-up table (LUT) based comparator-to-GPO mapping
Automatically detected SPI and I²C interface, 1.62V V_IH with V_DD = 5.5V

MODE pin to select between programming and standalone modes
User-programmable nonvolatile memory (NVM)
Internal, external, and V_DD references
Wide operating range
- 1.8V to 5.5V power supply
- -40°C to +125°C temperature range

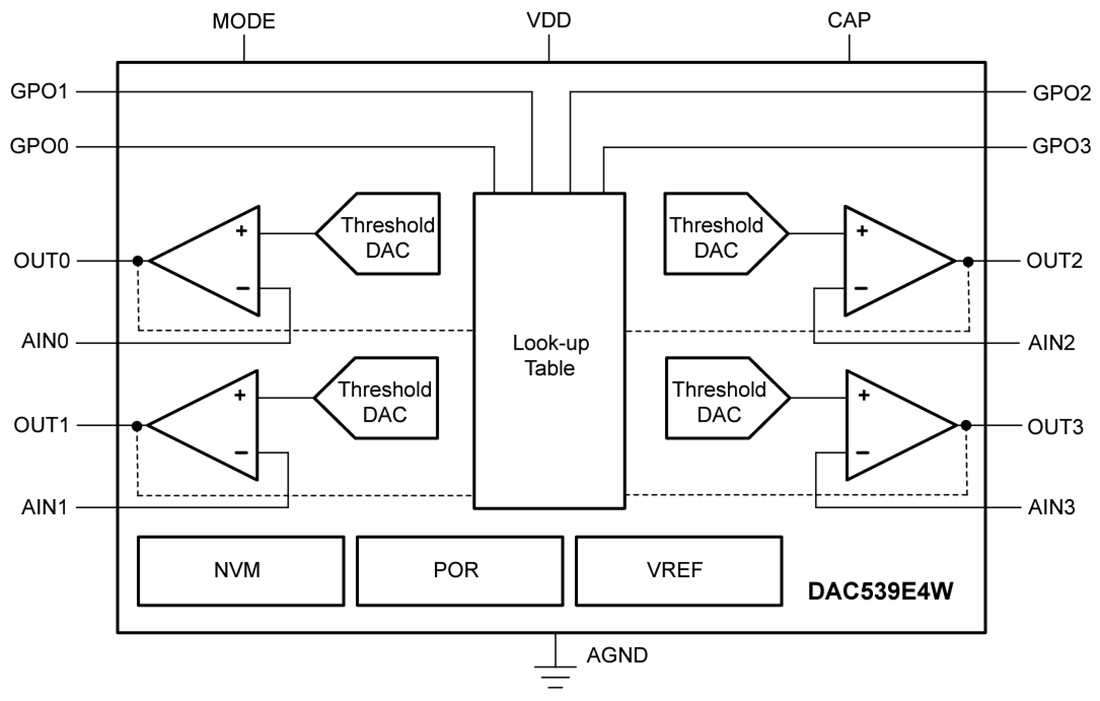

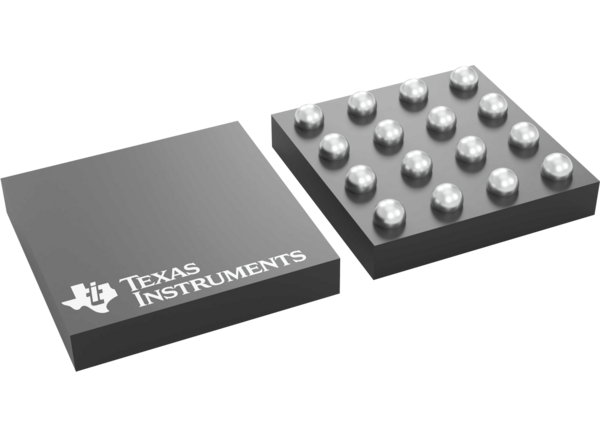

1.72mm × 1.72mm, nominal 16-pin DSBGA package
