Texas Instruments DAC80516 Digital-to-Analog Converters (DACs)

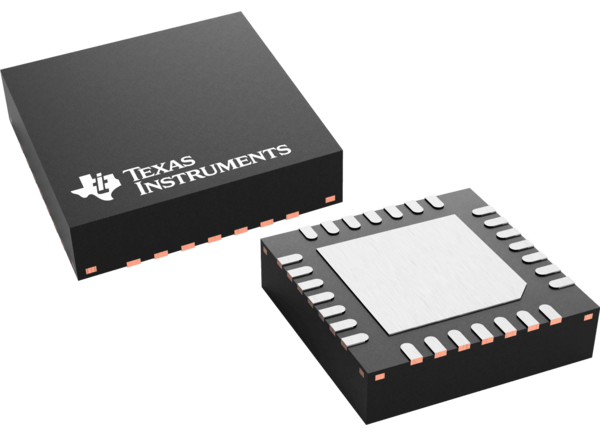

Texas Instruments DAC80516 Digital-to-Analog Converters (DACs) are low-power, 16-channel, and buffered voltage-output DACs. These DACs with user-selectable gain configurations can provide full-scale outputs of 2.5V or 5V. The DAC80516 DACs include a 2.5V 5ppm/°C internal reference eliminating the need for external precision reference in various applications. These DACs communicate through an SPI and I2C-supported serial interface, operating at clock rates of up to 50MHz (during SPI writes to the device). The DAC80516 DACs are ideal for optical modules, inter-DC interconnects, and analog output modules.

Features

  • Performance:
    • INL:±2LSB maximum at 16-bit resolution
    • TUE:±0.15% of FSR maximum
  • Integrated 2.5V precision internal reference:
    • ±2.5mV maximum initial accuracy
    • 5ppm/°C typical drift
  • High drive capability of 50mA with 0.5V from supply rails
  • Flexible configuration options:
    • 2x and 1x user selectable gain
    • Reset to zero scale
    • Clear output function
  • Wide operating range:
    • 2.7V to 5.5V power supply
    • -40°C to 125°C temperature range
  • SPI and I2C interfaces operate at a 1.7V to 5.5V voltage range:
    • SPI: 4-wire interface
    • I2C: Four target addresses
  • 4mm x 4mm, 28-pin WQFN small package

Applications

  • Optical modules
  • Inter-DC interconnect
  • Analog output module

Evaluation Module

DAC80516EVM DAC Evaluation Module (EVM)

Texas Instruments DAC80516EVM DAC Evaluation Module (EVM)

An easy-to-use platform for evaluating the functionality and performance of the DAC80516 device.

Learn Moreabout Texas Instruments DAC80516EVM DAC Evaluation Module (EVM) View Productsrelated to Texas Instruments DAC80516EVM DAC Evaluation Module (EVM)

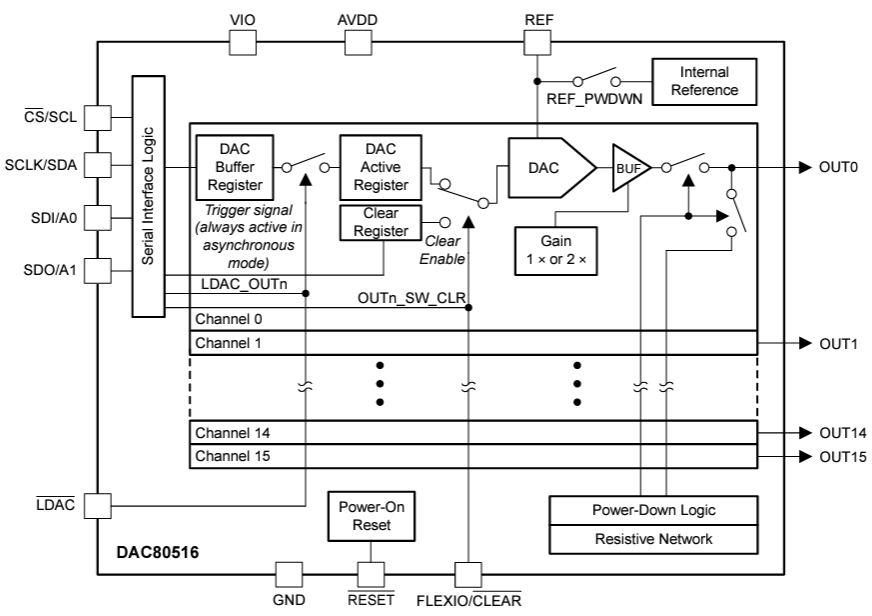

Block Diagram

Block Diagram - Texas Instruments DAC80516 Digital-to-Analog Converters (DACs)
Published: 2025-01-14 | Updated: 2025-02-13
