Texas Instruments TMDSCNCD28388D controlCARD Evaluation Module

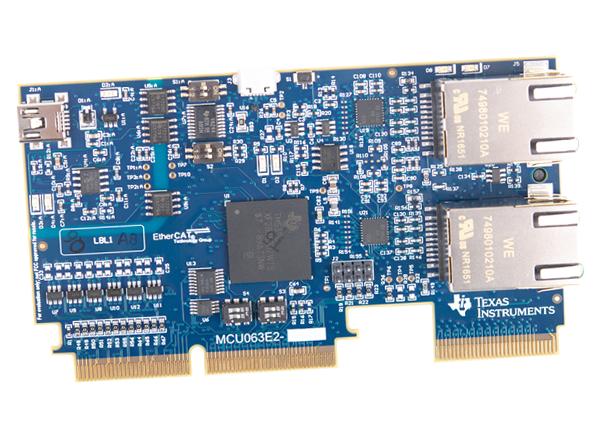

Texas Instruments TMDSCNCD28388D controlCARD Evaluation Module (EVM) is a low-cost evaluation and development board for the C2000™ MCU series of F2838xS and F2838xD devices. Texas Instruments TMDSCNCD28388D has an HSEC180 (180-pin high-speed edge connector) controlCARD and is ideal for initial evaluation and prototyping. In the assessment of TMDSCNCD28388D, a 180-pin docking station TMDSHSECDOCK is required and can be purchased separately.

Features

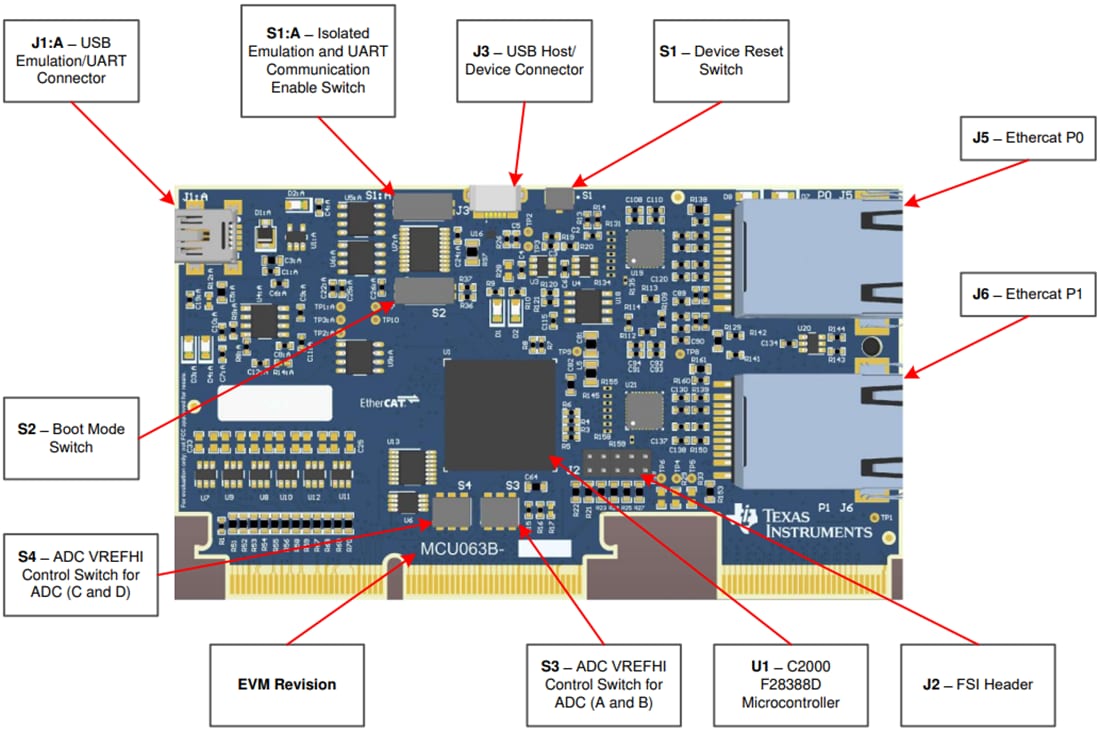

Hardware
- TMDSCNCD28388D – HSEC180 controlCARD
- Isolated XDS100v2 USB-to-JTAG debug probe enables real-time in-system programming and debugging
- Analog I/O, digital I/O, and JTAG signals at standard 180-pin HSEC interface
- 2-Port EtherCAT slave controller

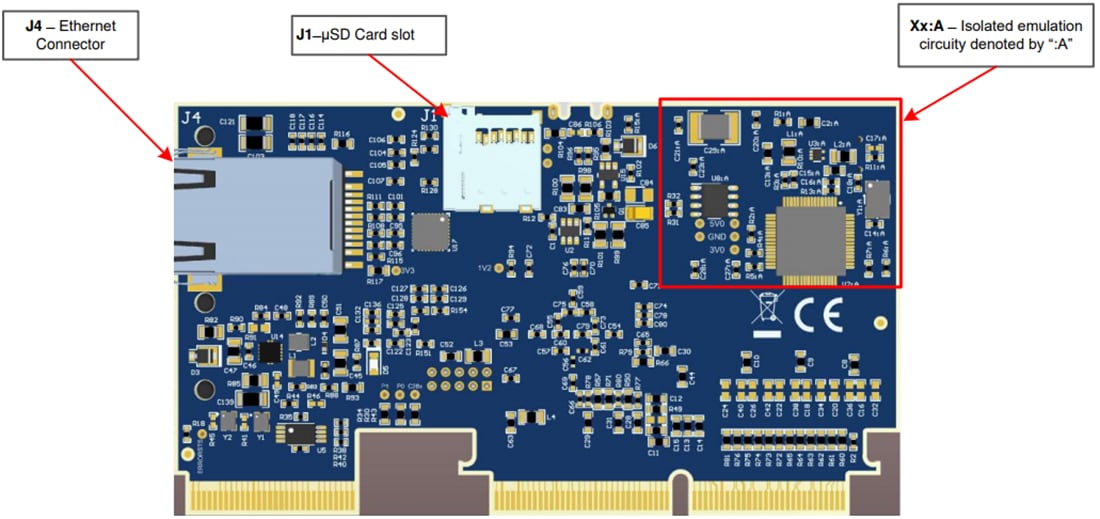

- Ethernet connector
