Texas Instruments TUSB1044AEVM Evaluation Module
Texas Instruments TUSB1044AEVM Evaluation Module is a platform for evaluating the performance of the TUSB1044A redriver. The TUSB1044A is a USB Type-C® Alt Mode redriver switch that supplies data rates up to 10Gbps. The protocol-agnostic linear redriver provides USB Type-C Alt Mode interfaces, including DisplayPort™. Additionally, the TUSB1044A supports USB 3.2 data rates up to 20Gbps when operating in USB 3.2 x2 mode.
Features
- Plug and play
- Operates in DisplayPort sink mode
- External power through 5V DC IN is required
- Used with legacy USB or USB Type-C systems for evaluation purposes
Applications
- Tablets
- Notebooks
- Desktops
- Docking stations
Kit Contents
- TUSB1044A device
- Standard 5V barrel jack receptacle
- USB-C receptacle that connects to a USB/DisplayPort Alt Mode capable device
- USB-C plug that connects to a USB/DisplayPort Alt Mode capable host
- Headers for configuring various TUSB1044A features
System Example

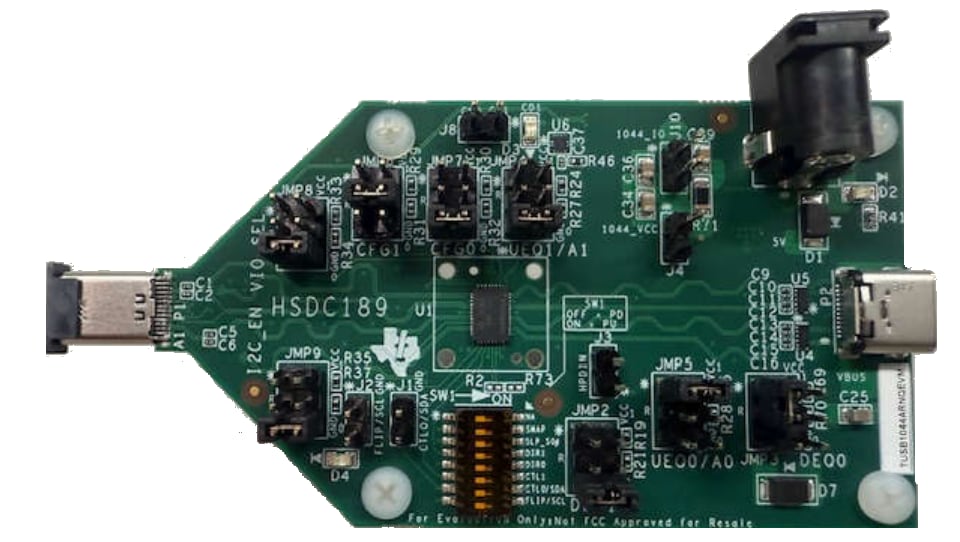

Layout
