Würth Elektronik Qi Wireless Power Charging Coils
Würth Elektronik Qi Wireless Power Charging Coils (WE-WPCC) allow power to be transferred wirelessly through inductive coupling. These charging coils and receivers go beyond the Qi standard of 20W with many of the coils capable of handling up to 200W. They come with a transmit coil and the receive coil. The coils are inductively coupled and the AC current in the transmit coil generates a magnetic field that induces a voltage in the receive coil. Würth Elektronik WE-WPCC Qi Wireless Power Charging Coils are wound with litz wire rather than bifilar and offer outstanding performance with low DCRs and high Q values. When used together, these transmit and receive coils achieve an efficiency of up to 93%.
Features
- Qi-standard compliant
- Uses litz wire with high Q value
- Applicable for up to 20W (up to 200W outside the standards)
- High permeability shielding
- High reliable construction
- Pot core construction limits the stray field in the design
Applications
- Wearables
- Energy, gas, water, and smart meters
- Home and building automation
- Access, light, climate, and remote controls
- Alarm and security systems
- Health and fitness
- Portable medical devices and remote diagnostics
- Portable devices used in a clean area
- Smart accessories
- Consumer products
- Digital cameras, baby phones, walkie-talkies, remote controls, smartphone sleeves, and watertight products
- Explosion-sensitive area where the use of a physical connection is hazardous
Videos
Selector Guide

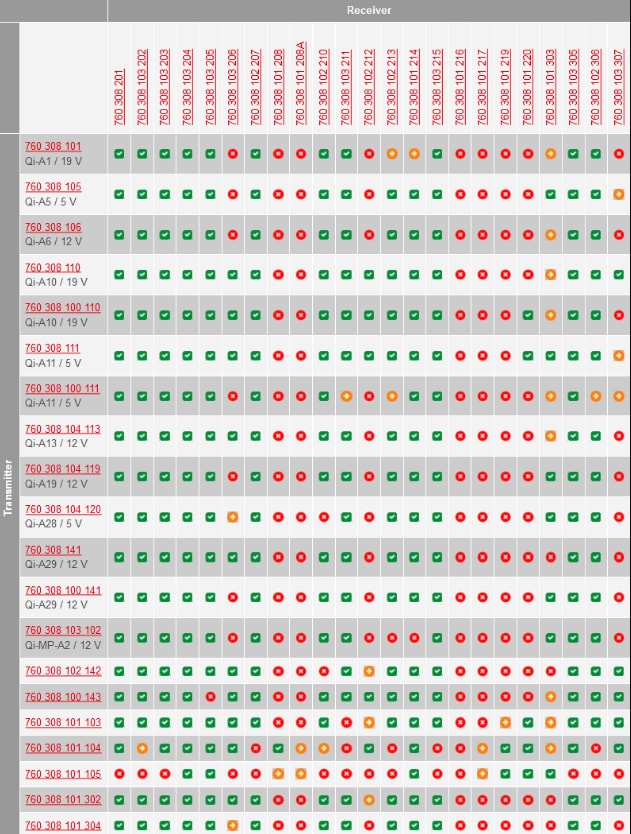

Transmitter & Receiver Interaction
Additional Resources
Featured Products
Würth Elektronik 760308 Qi Wireless Power Charging Coils
Features high-inductance, high Q-factor, and high DCR.
Würth Elektronik 760308103102 Qi Wireless Power Charging Coil
Suitable for applications needing up to 200W, solutions for charging wearables and mobile devices.
Associated Products
Würth Elektronik Gleanergy Demonstration Kit
Development platform that powers wireless sensor nodes from an ambient energy source.
Würth Elektronik 760308MP Wireless Power Design Kit
Plug-and-play wireless power solution based on the MP-A7 transmitter type.
Würth Elektronik 760308EMP 200W Wireless Power Development Kit
Demonstrates the advantages of wireless power, allows developers to test and integrate applications.
Würth Elektronik Design Guides
Offering engineers expertise in a variety of subjects.
Associated Tool
Würth Elektronik REDEXPERT AC Loss Tool
Online software tool that simulates power inductors for precision comparison.
